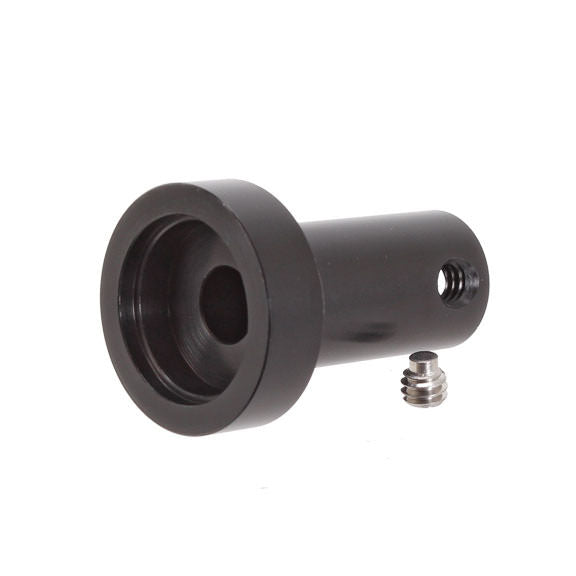

Fox Shox Dial Indicator Attachment for Plate Lift Measurement 803-00-806
by Fox Shox
$91.00
SKU 149797
- For measuring lockout plate lift
- For Lever models: when switching from Firm to Medium modes, Lockout plate lift should measure between 0.030-0.047in (0.77-1.19mm)
- For Remote models: when switching from Firm to Open modes, Lockout plate lift should measure between 0.072-0.090in (1.83-2.29mm)
- 1 or 2 spacers (044-20-035 or 044-10-035) may be added or removed from the lockout shim stack to adjust lockout plate lift to within approved range
UPC: 611056143728
EAN: Not available
Manufacturer Part Number: 803-00-806
FX2316
149797-Q0-L
- For Lever models: when switching from Firm to Medium modes, Lockout plate lift should measure between 0.030-0.047in (0.77-1.19mm)
- For Remote models: when switching from Firm to Open modes, Lockout plate lift should measure between 0.072-0.090in (1.83-2.29mm)
- 1 or 2 spacers (044-20-035 or 044-10-035) may be added or removed from the lockout shim stack to adjust lockout plate lift to within approved range
Today's Stock Status
2 Available to ship in 2-4 Business Days
UPC: 611056143728
EAN: Not available
Manufacturer Part Number: 803-00-806
FX2316
149797-Q0-L
