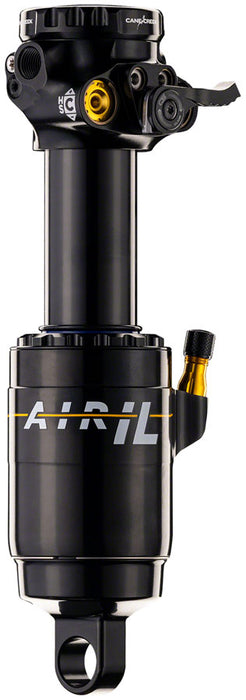

Cane Creek Air IL Next Gen Rear Shock - 185 x 55mm, Black, Trunnion
by Cane Creek
$629.99 USD
SKU 186009
The Air IL Next Gen shock packs class-leading performance in a smaller and stronger package, featuring a thicker inner damper tube for increased strength and a 17mm reduction in overall width on the valve body to increase fitment possibilities on tight frames. The Class-leading externally adjustable DB Twin Tube technology provides the widest range of 4-way damping adjustability on the market - designed to bring a new level of control to XC and Trail Bikes.
UPC: 840226091082
EAN: Not available
Manufacturer Part Number: BAD2620
RS0487
186009-Q0-L
- 6mm reduction in the outer diameter of the Air spring to further increase the likelihood of fitment while increasing the max psi pressure up to 350psi (Up from 300psi)
- 4-Way independent adjustment - high and low speed compression, high and low speed rebound
- Twin-tube damping for unparalleled small bump compliance
- Climb switch lessens low-speed compression and rebound damping at the same time for improved climbing traction
- Hand assembled and Individually dyno-tested
Product Specifics
- Stroke (mm): 55
- Metric: Yes
- Lockout Switch: Climb Switch
- Weight: 385
- Eyelet Diameter (mm): Trunnion
- Eyelet Diameter (mm): 12.7
- External Adjustments: High Speed Compression Damping
- External Adjustments: Low Speed Compression Damping
- External Adjustments: Rebound Damping
- Positive Spring: Air
- Eye to eye length (mm): 185
Today's Stock Status
3 Available to ship in 2-4 Business Days
