CannondaleBad Boy Rigid Lefty Fork for 27.5" BBQ Small/Medium NOS C33197M10F1

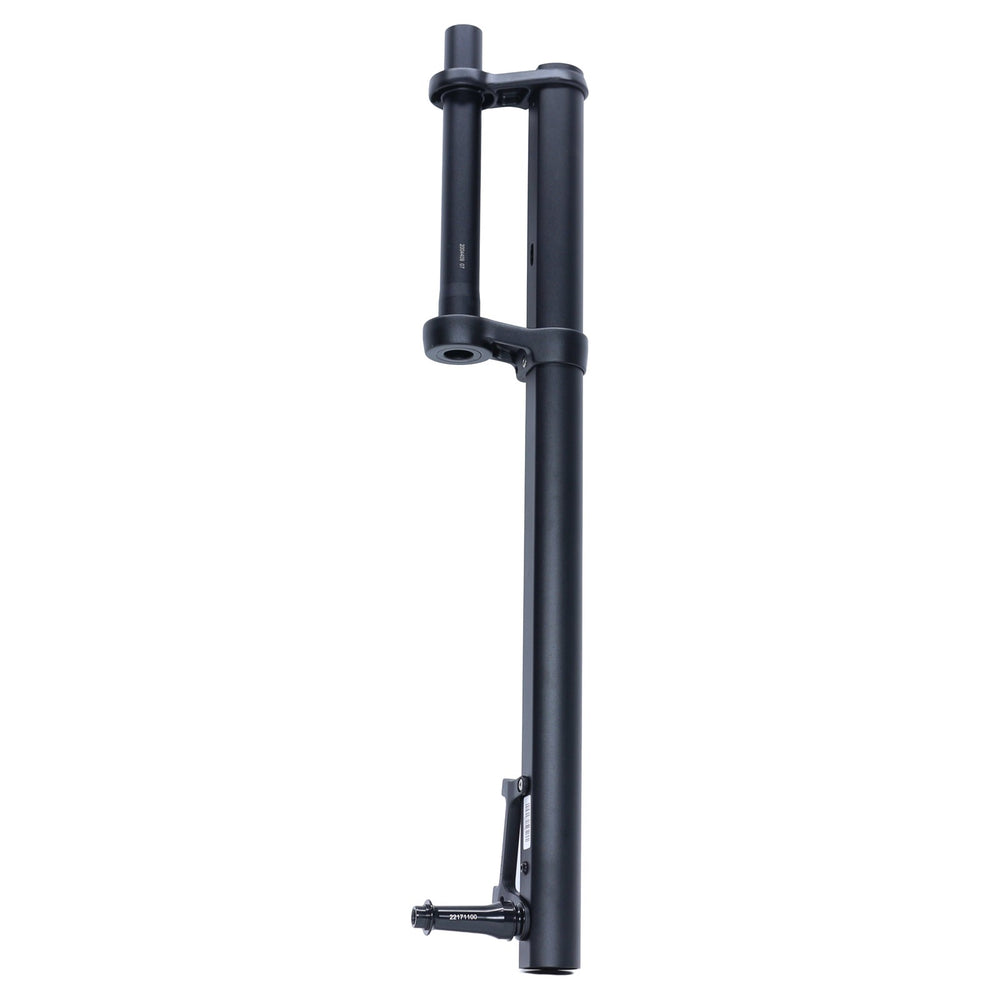

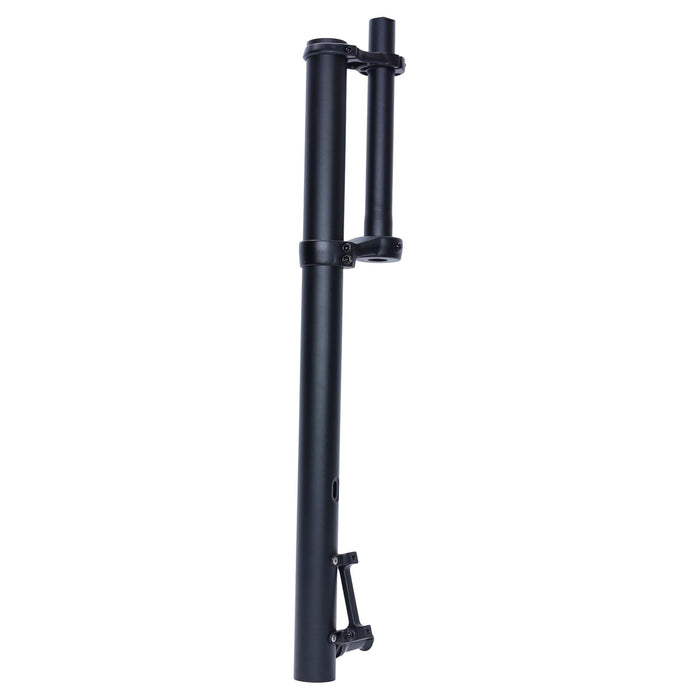

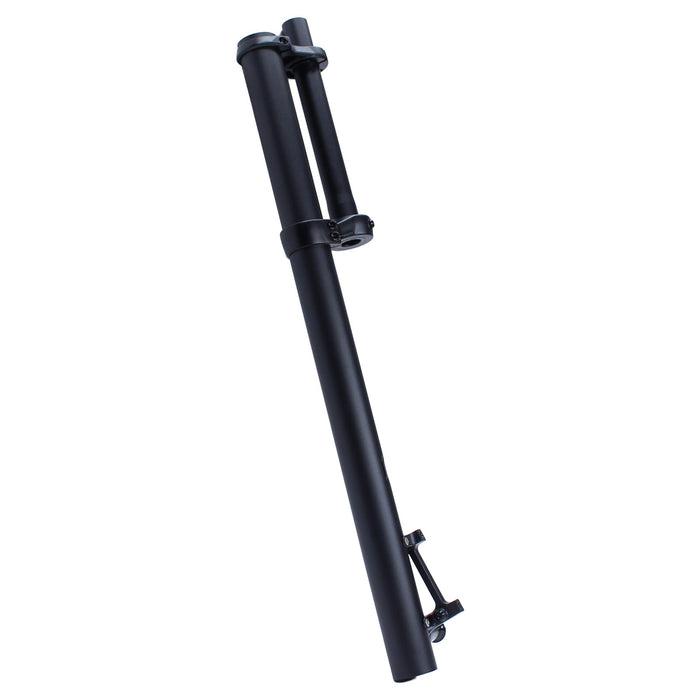

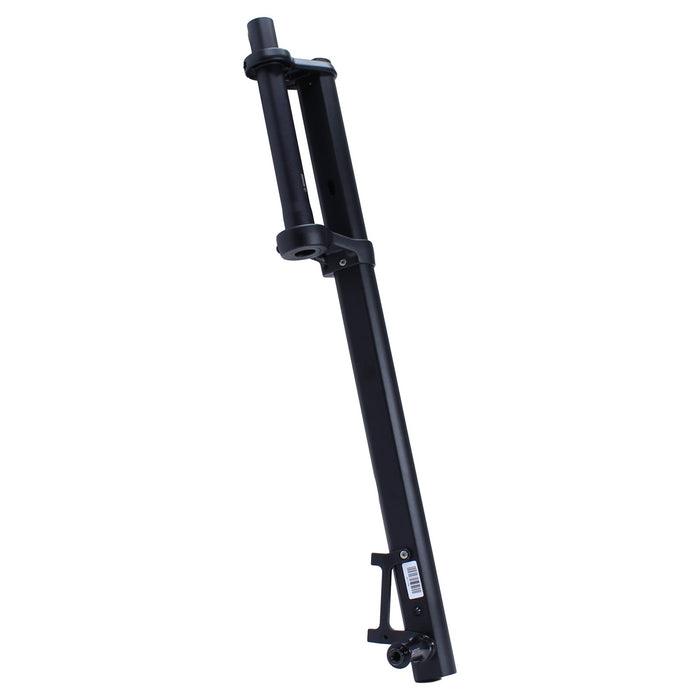

NOS Cannondale Bad Boy rigid Lefty fork for 27.5" wheels.

This very cool fork will fit size small and medium 27.5" Bad Boy frames as well as other frames with up to 183mm finished headtube and headset including crown race. Can fit smaller frames and upper crown can be adjusted down and fork structure trimmed to fit shorter headtubes. Weighs 1090 grams as pictured.

Ideally mates with the CK2107U0060 sandwich style Bad Boy stem (not included, sold separately) which reduces the 183mm max to about 173mm. Can also be used with standard 1 1/8" stems. Lower clamp is riveted and bonded to structure and cannot be moved. Upper clamp is adjustable and removable for installation but is required for proper function. Axle center to bottom of lower clamp is about 395mm so any wheel/tire combo will need to have at least 15mm clearance for a 760mm maximum inflated installed tire diameter.

Fork is not compatible with lightpipe and does not include CK5357U00OS Bad Boy plug for the top of the structure tube. We do have some small Bad Boy horizontal dropout frames available that will be a perfect match to this fork! Find them in our store!

• Steer tube diameter: 1 1/8" straight
• Steer tube length: 230mm
• Steer tube material: Aluminum
• Fork material: Aluminum
• Crown race style: 1 1/8"
• Axle to crown race seat: 420mm
• Axle type: Lefty 50/Lefty SL - not compatible with SuperMax/Lefty 2.0/Lefty 60 hubs
• Brake type: Disc
• Wheel size: 27.5"
• Contact us with any questions before purchase about condition, compatibilty, or other needs.
