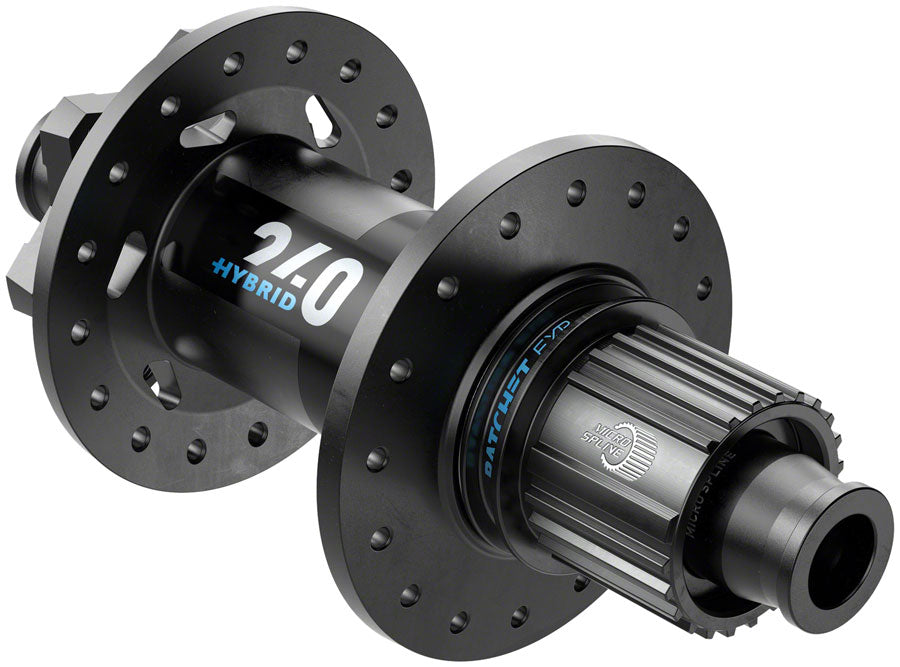

DT Swiss 240 Hybrid Rear Hub - 12 x 148mm, 6-Bolt, Micro Spline, Black, 36H, 30pt
by DT Swiss
Sold out
$532.90
SKU 197649
The 240 Hybrid hub is built for an extended eMTB adventure. The unique design incorporates special components like the DTSwiss Ratchet EXP OS system with 30 teeth to ensure reliable power transmission from both the rider and the motor to the ground. The drive side bearing is bigger and the hub flange is enlarged. The spoke holes are expanded, purpose-built for 2.34 mm DT Swiss spokes, which deliver enhanced resistance to acceleration and braking torques. Crafted from hardened steel, the freehub system further reinforces the hub's resilience, allowing for extended and trouble-free e-bike rides.
UPC: Not available
EAN: 7613052295497
Manufacturer Part Number: H240TDD3R32SA9092S
HU9739 372193
197649-Q0-L
- Increased wall thickness
- Oversize spoke interface
- Oversize hub shell
- Hybrid specific 24t steel ratchets
Product Specifics
- Rear Axle: 12mm Thru x 148mm
- Cassette Body Type: Shimano Micro Spline
- Color: Black
- Skewer Included: No
- Bearing Type: Sealed Cartridge
- Designed for ebike: Yes
- Defined Color: Black
- Spoke Interface: J-Bend
- keyword search: electric bikes, electric bicycle, e-bike, e-bikes
- Hub Drilling: 32
- Hub/Brake Compatibility: 6-Bolt Disc
